OIL WATER SEPARATOR - INDUSTRIAL
FREYLIT CPI Oil - Water Separator - Installations Kits
FREYLIT designs and produces a wide range and sizes of Oil SEPARATORS for oil & gas corporations, engineering companies, and industrial clients who use FREYLIT corrugated coalescent plate oil separators for the treatment of oily process waters at oil & gas fields, refineries, steel plants, power stations, marine oil terminals, etc. FREYLIT supplied to projects in Europe, Asia, America and the Middle East.
Types of Applications
- Improvement / Upgrade of existing API Separators
- Oil Fields
- Gas Fields
- Refineries
- Steel Mills
- Airports
- Power Plants
WHAT CAN BE SEPARATED
Free (Not Emulsified or Dissolved) Oil
Oil Output concentration down to 5 micron
Specific Gravity of Oil under 1
Dynamic Viscosity of oil up to 0.03 KG/(m·s)
Suspended Solids with bulk density greater than 1 Kg/L
FLOW RATES
From 45 – 3,000 gpm – built through ONE Channel
Higher flow rates achieved by Multi Channels
Above Flow Rate are based on gravity flow

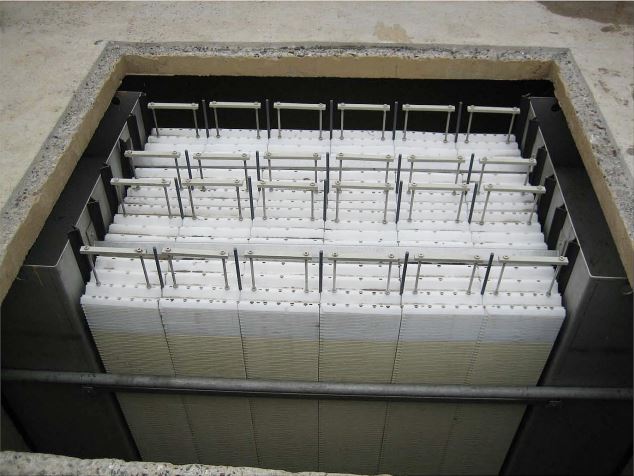

- Freylit CPI Internals for installation into existing tanks or tanks built on site
- Freylit Vertical Plate Packs – to aid sedimentation / oil extraction before OWS
- Freylit Horizontal Plate Packs
- Plate Packs can be installed in frames with lifting lugs for easy installation & maintenance
- Freylit Oil Pipe Skimmer – Manual or automatic slotted Oil Pipe Skimmer
